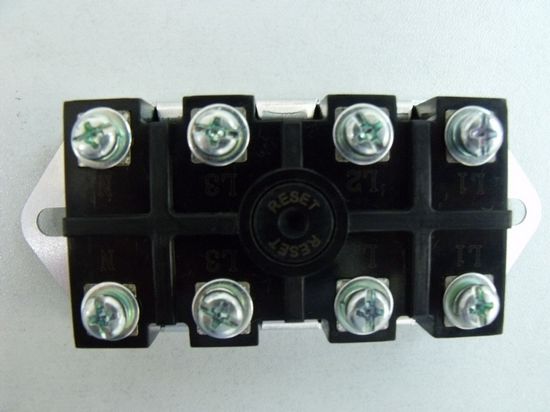

Product Name: Disc Type Thermostat
Product Code: KSD308A
Application
For use in household or industrial appliances, HVAC and office equipment such as: Instant electric water heater、storage-type electric water heater、 boiler , etc.
Specifications
Function : Electrical contacts open/close on temperature rise. When the temp. returns to the specified reset temp., the contacts will return to the original state.
Housing Material : Phenolic Resin (PF)
Standard Rating :[ CQC ] 400V AC 45A
Number of Automatic Cycles for each Automatic Action: [ CQC ] 10,000 cycles
Maximum Temperature : [ CQC ] 150℃
Temperature Setting Range : [ CQC ] 0℃ - 150℃
Tolerance of Operation Range : ± 3℃
Standard Terminals
Screw terminals are suitable for M4
Approval
CQC
