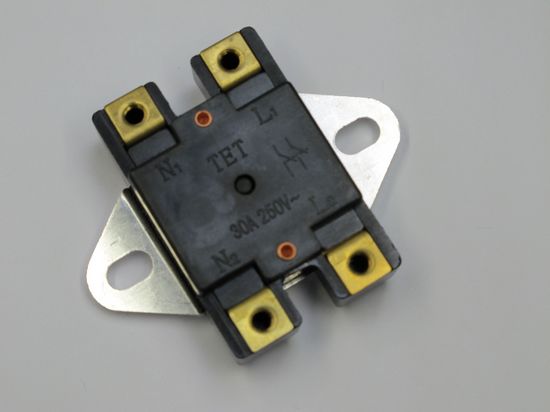

Product Name: Disc Type Thermostat
Product Code: KSD306
Application
For use in household or industrial appliances, HVAC and office equipment such as: coffee maker, jug kettle, Water heater, dishwasher, gas furnace, clothes dryer, etc.
Specifications
Function : Electrical contacts open/close on temperature rise. When we push the reset button, the contacts will return to the original state.
Housing Material : Phenolic Resin (PF)
Standard Rating [ CQC ] 250V AC 30A
Number of Automatic Cycles for each Automatic Action: [ CQC ] 6,000 cycles
Maximum Temperature : [ CQC ] 150℃
Temperature Setting Range : [ CQC ] 0℃ - 150℃
Tolerance of Operation Range : ± 5℃~± 10℃
Standard Terminals
Screw terminals are suitable for M4
Approval
CQC
