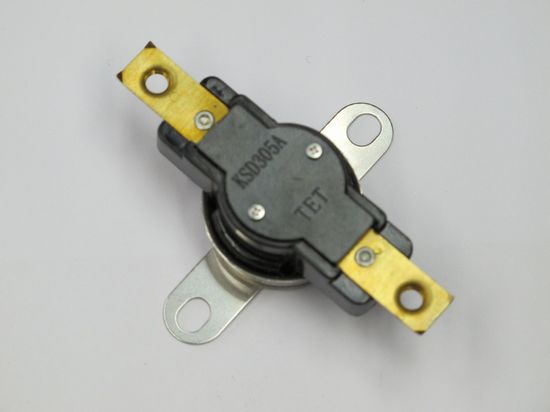

Product Name: Disc Type Thermostat
Product Code: KSD305A
Application
For use in household or industrial appliances, HVAC and office equipment such as: coffee maker, jug kettle, Water heater, dishwasher, gas furnace, clothes dryer, etc.
Specifications
Function : Electrical contacts open/close on temperature rise. When the temp. returns to the specified reset temp., the contacts will return to the original state.
Housing Material : Phenolic Resin (PF)
Standard Rating
[ UL & CUL ] 125V AC 40A
[ VDE & CE ] 250V AC 30A
[ TUV ] 250V AC 20A
[ CQC ] 250V AC 40A
Number of Automatic Cycles for each Automatic Action:
[ UL & CUL ] 30,000 cycles
[ VDE & CE ] 30,000 cycles
[ TUV ] 10,000 cycles
[ CQC ] 60,000 cycles
Maximum Temperature :
[ UL & CUL ] 140℃
[ VDE & CE ] 140℃
[ TUV ] 120℃
[ CQC ] 150℃
Temperature Setting Range :
[ UL & CUL ] 0℃ - 145℃
[ VDE & CE ] 0℃ - 160℃
[ TUV ] 0℃ - 150℃
[ CQC ] 0℃ - 150℃
Tolerance of Operation Range : ± 5℃~± 10℃
Standard Terminals
Standard terminals are suitable for 6.3mm receptacles or M4 screw.
Approval
UL / CUL TUV VDE / CE CQC
