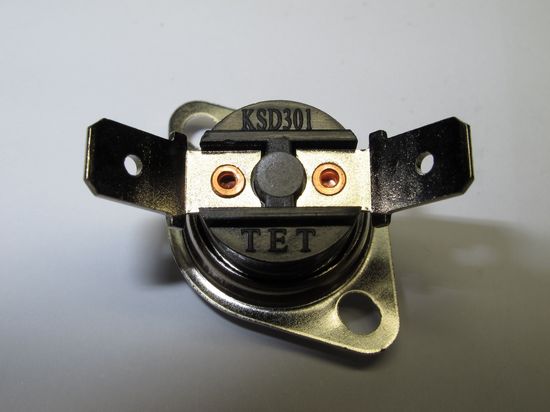

Product Name: Disc Type Thermostat
Product Code: KSD301A
IMAGE_DESC_TAG
Application
For use in household or industrial appliances, HVAC and office equipment such as: coffee maker, jug kettle, Water heater, dishwasher, gas furnace, clothes dryer, etc.

Specifications
Function : Electrical contacts open/close on temperature rise. When the temp. returns to the specified reset temp., the contacts will return to the original state.
Housing Material : Phenolic Resin (PF)
Standard Rating
[ UL & CUL ] 125V AC 16A
[ TUV & CE ] 250V AC 10A
[ CQC ] 250V AC 10A
[ CQC ] 250V AC 15A
Number of Automatic Cycles for each Automatic Action:
[ UL & CUL ] 100,000 cycles
[ TUV & CE ] 10,000 cycles
[ CQC ] 100,000 cycles
[ CQC ] 30,000 cycles
Maximum Temperature :
[ UL & CUL ] 145℃
[ TUV & CE ] 160℃
[ CQC ] 150℃
[ CQC ] 150℃
Temperature Setting Range :
[ UL & CUL ] 0℃ - 145℃
[ TUV & CE ] 0℃ - 160℃
[ CQC ] 0℃ - 150℃
[ CQC ] 0℃ - 150℃
Tolerance of Operation Range : ± 5℃~± 10℃

Standard Terminals

Standard terminals are suitable for 4.8mm and 6.3mm receptacles.
Categorized numbering lndex
1. P-Phenolic Resin
2. D-90℃terminal   E-180°terminal
3. A-6.3mm terminal B-4.8mm terminal
4. M-Moveable level mounting bracket F-Fix step mounting bracket
N-Without mounting bracket S-Screw type mounting bracket
5. A-Auto reset
6. Operation Temperature
7. NC-Normal Close NO-Normal Open

Approval
UL / CUL  CQC  TUV / CE
