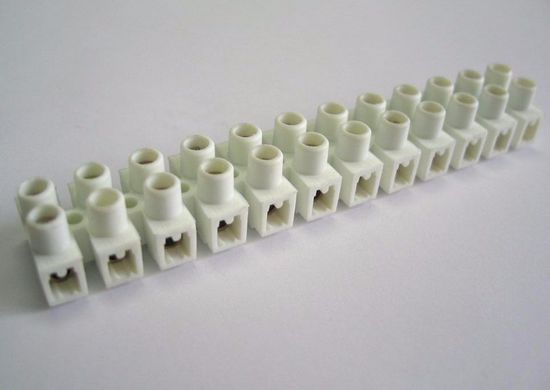

Product Name: Terminal Block
Product Code: KS-618
IMAGE_DESC_TAG
Application
This Terminal Block is suitable for use in household and industries electrical equipment. It is essential for manufacturers to consider the required minimum creepage and clearance distance of 8 mm, e.g. by use of an insulating plate.

Specifications
Housing Material : Polyamide PA 6
Junction Inserts ( Terminal Tubes ) : Copper alloy ( 12 pieces )
Fixing Screw : M3 x 6 mm
Voltage Rating : [ VDE & CE ] 450V AC 24A
Nominal Cross-Section : [ VDE & CE ] 2.5 mm²
Continuous Working Temperature : [ VDE & CE ] 100℃
Conductor Size : 6 mm²

Mounting Methods
This Terminal Block can be installed by M3 screw inside the electrical equipment.

Approval

VDE / CE
