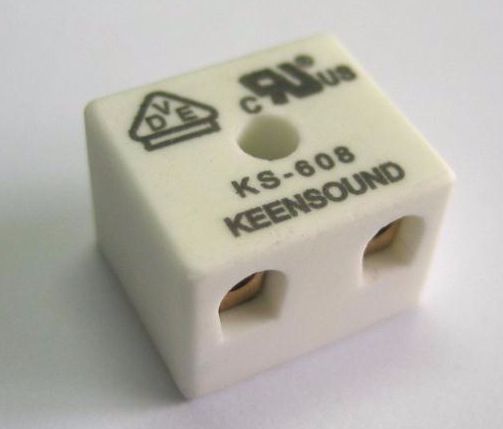

Product Name: Terminal Block
Product Code: KS-608
Application
This Terminal Block is suitable for use in household and industries electrical equipment. It is essential for manufacturers to consider the required minimum creepage and clearance distance of 8 mm, e.g. by use of an insulating plate.
Specifications
Housing Material : Ceramic
Junction Inserts ( Terminal Tube ) : Copper alloy
Fixing Screw : M3 x 6 mm
Voltage Rating :
[ VDE & CE ] 400V AC 24A
[ UL & CUL ] 300V AC 20A
Nominal Cross-Section :
[ VDE & CE] 2.5 mm²
[ UL & CUL ] 14 to 18 AWG
Continuous Working Temperature : [ All Standard] 200℃
Conductor Size : 6 mm²
Mounting Methods
This Terminal Block can be installed by M4 screw inside the electrical equipment.
Approval
UL / CUL VDE / CE
