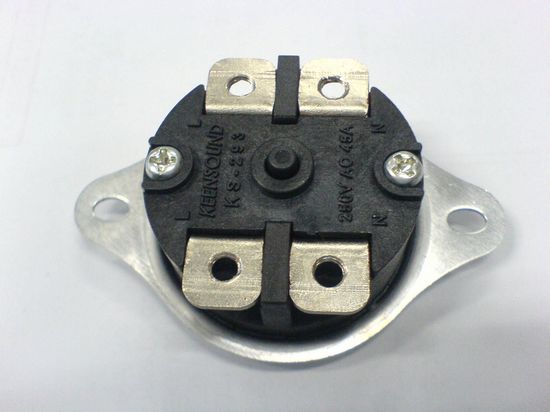

Product Name: Disc Type Thermostat
Product Code: KS-293
Application
For use in household or industrial appliances, HVAC and office equipment such as: Instant electric water heater、storage-type electric water heater、 boiler …etc…
Specifications
Function : Electrical contacts open/close on temperature rise. When the temp. returns to the specified reset temp., the contacts will return to the original state.
Housing Material : Phenolic Resin (PF)
Standard Rating
[ UL & CUL ] 250V AC 45A
[ VDE &CE ] 250V AC 45A
[ CQC ] 250V AC 45A
Number of Automatic Cycles for each Automatic Action:
[ UL & CUL ] 10,000 cycles
[ VDE & CE ] 10,000 cycles
[ CQC ] 10,000 cycles
Maximum Temperature :
[ UL & CUL ] 150℃
[ VDE & CE ] 150℃
[ CQC ] 150℃
Temperature Setting Range :
[ UL & CUL ] 0℃ - 150℃
[ VDE & CE ] 0℃ - 150℃
[ CQC ] 0℃ - 150℃
Tolerance of Operation Range : ± 5℃~± 10℃
Standard Terminals
Screw terminals are suitable for M4
Approval
UL / CUL VDE / CE CQC
