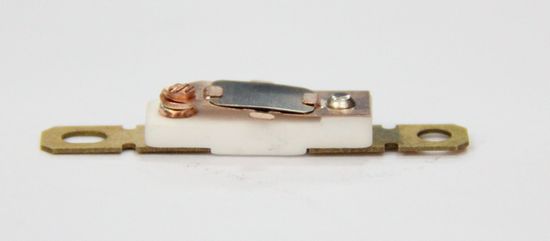

Product Name: Overheat Protector
Product Code: KS-203
Application
For use in household or industrial appliances, HVAC and office equipment such as blower protect
Specifications
Function : Electrical contacts open/close on temperature rise. When the temp. returns to the specified reset temp., the contacts will return to the original state.
Housing Material : CERAMIC
Standard Rating
[ UL & CUL ] 250V AC 10A
[ VDE &CE ] 250V AC 10A
[ CQC ] 250V AC 10A
Number of Automatic Cycles for each Automatic Action:
[ UL & CUL ] 10,000 cycles
[ VDE & CE ] 10,000 cycles
[ CQC ] 10,000 cycles
Maximum Temperature :
[ UL & CUL ] 150℃
[ VDE & CE ] 150℃
[ CQC ] 150℃
Temperature Setting Range :
[ UL & CUL ] 0℃ - 150℃
[ VDE & CE ] 0℃ - 150℃
[ CQC ] 0℃ - 150℃
Tolerance of Operation Range : ± 5℃~± 10℃
Standard Terminals
Keep a put type to connect a line port
Approval
UL / CUL VDE / CE CQC
