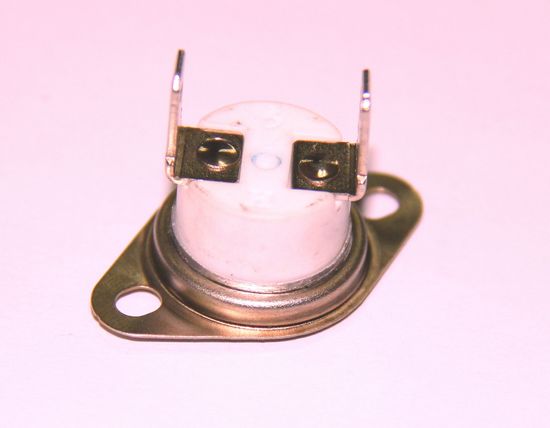

Product Name: Disc Type Thermostat
Product Code: KS-183
Application
For use in household or industrial appliances, HVAC and office equipment such as: coffee maker, jug kettle, Water heater, dishwasher, gas furnace, clothes dryer, etc.
Specifications
Function : Electrical contacts open/close on temperature rise.
Housing Material : Ceramic
Standard Rating
[ UL & CUL] 125V AC 16A
[ KEMA & CE ] 250V AC 16A
Number of Automatic Cycles for each Automatic Action:
[UL & CUL] S.O.D.
[ KEMA & CE ] S.O.D.
Maximum Temperature :
[UL & CUL ] 250℃
[ KEMA & CE ] 250℃
Temperature Setting Range :
[UL & CUL ] 0℃ - 250℃
[ KEMA & CE ] 0℃ - 250℃
Tolerance of Operation Range : ± 5℃~± 10℃
Standard Terminals
Standard terminals are suitable for 4.8mm and 6.3mm receptacles.
Categorized numbering Index
W – Without mounting bracket M – Moveable level mounting bracket
F – Fix step mounting bracket S – Screw type mounting bracket
S – 4.8mm terminal B – 6.3mm terminal
F – Flat terminal E – Elbow (90º) terminal
A – Elbow (other angle) terminal
Operation Temperature
NC – Normal Close
Approval
UL / CUL KEMA / CE
