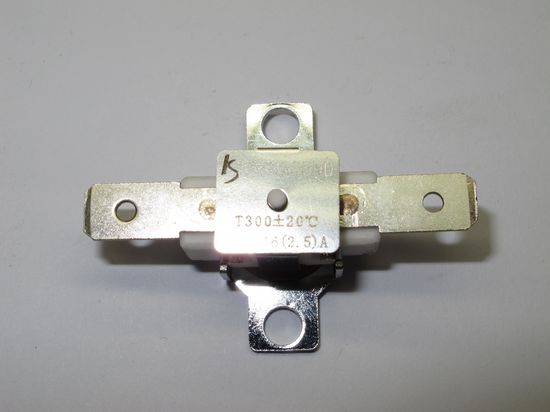

Product Name: Disc Type Thermostat
Product Code: KS-163
Application
For use in household or industrial appliances, HVAC and office equipment such as: coffee maker, jug kettle, Water heater, dishwasher, gas furnace, clothes dryer …etc…
Specifications
Function : Electrical contacts open/close on temperature rise. When the temp. returns to the specified reset temp., the contacts will return to the original state.
Housing Material : Ceramic
Standard Rating
[ UL & CUL ] 125V AC 16A
[ VDE & CE ] 250V AC 16A
Number of Automatic Cycles for each Automatic Action:
[ UL & CUL ] 30,000 cycles
[ VDE & CE ] 30,000 cycles
Maximum Temperature : [All Standard] 300℃
Temperature Setting Range : [All Standard] 0℃ ~300℃
Tolerance of Operation Range : ± 5℃~± 20℃
Standard Terminals
Standard terminals are suitable for 4.8mm and 6.3mm receptacles.
Approval
UL / CUL VDE / CE
