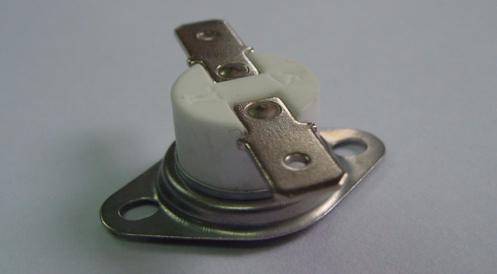

Product Name: Disc Type Thermostat
Product Code: KS-123
Application
For use in household or industrial appliances, HVAC and office equipment such as: coffee maker, jug kettle, Water heater, dishwasher, gas furnace, clothes dryer…etc…
Specifications
Function :
Electrical contacts open/close on temperature rise. When the temp. returns to the specified reset temp., the contacts will return to the original state.
Housing Material : Ceramic
Standard Rating
[ VDE & CE ] 250V AC 10A
[ KEMA ] 250V AC 10A
Number of Automatic Cycles for each Automatic Action:
[ VDE & CE ] 60,000 cycles
[ KEMA ] 60,000 cycles
Maximum Temperature :
[ VDE & CE ] 200℃
[ KEMA ] 250℃
Temperature Setting Range :
[ VDE & CE ] 0℃ - 200℃
[ KEMA ] 0℃ - 250℃
Tolerance of Operation Range : ± 5℃~± 10℃
Standard Terminals
Standard terminals are suitable for 4.8mm and 6.3mm receptacles.
Categorized numbering Index
W – Without mounting bracket M – Moveable level mounting bracket
F – Fix step mounting bracket S – Screw type mounting bracket
S – 4.8mm terminal B – 6.3mm terminal
F – Flat terminal E – Elbow (90º) terminal
A – Elbow (other angle) terminal
A – Auto reset M – Manual reset
Operation Temperature
NC – Normal Close NO – Normal Open
Approval
VDE / CE KEMA
