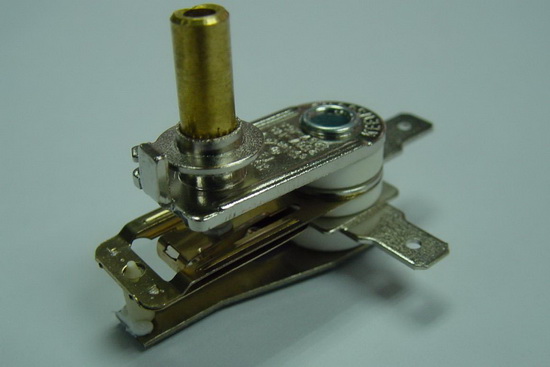

Product Name: High Current Thermostat
Product Code: KS-108
Application
For heavy loading (high electric current) appliances such as :dry / steam iron ,waffle maker , hot tray , electric stove, cooking oven , kitchen ware and heaters…etc.
Specifications
Function :
Single pole, the contact opens when the temperature is reached.
Standard Rating
[ UL & CUL ] 125V AC 16A
[ VDE & CE ] 250V AC 14A
[ CQC ] 250V AC 14A
Number of Automatic Cycles for each Automatic Action:
[ UL & CUL ] 30,000 cycles
[ VDE & CE ] 30,000 cycles
[ CQC ] 30,000 cycles
Maximum Temperature : [All Standard] 250℃
Temperature Setting Range : [All Standard] 0 - 250℃
Tolerance of Operation Range : ± 10℃
Turning Range : 300 limited turning ranges possible
Approval
UL / CUL CQC VDE / CE
