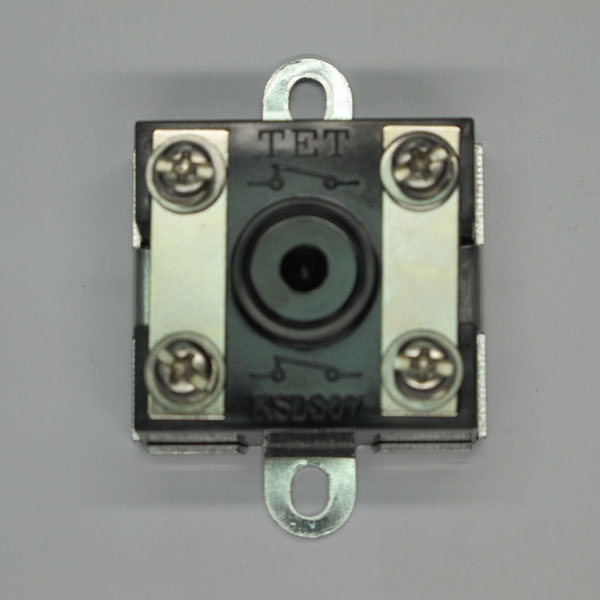

Product Name: Disc Type Thermostat
Product Code: KSD307A
Application
For use in household or industrial appliances, HVAC and office equipment such as: Instant electric water heater、storage-type electric water heater、 boiler , etc.
Specifications
Function : Electrical contacts open/close on temperature rise. When the temp. returns to the specified reset temp., the contacts will return to the original state.
Housing Material : Phenolic Resin (RF)
Standard Rating
[ TUV & CE ] 250V AC 45A
[ CQC ] 250V AC 45A
Number of Automatic Cycles for each Automatic Action:
[ TUV & CE ] 10,000 cycles
[ CQC ] 30,000 cycles
Maximum Temperature :
[ TUV & CE ] 150℃
[ CQC ] 150℃
Temperature Setting Range :
[ TUV & CE ] 0℃ - 150℃
[ CQC ] 0℃ - 150℃
Tolerance of Operation Range : ± 5℃~± 10℃
Standard Terminals
Screw terminals are suitable for M4
Approval
TUV / CE CQC
