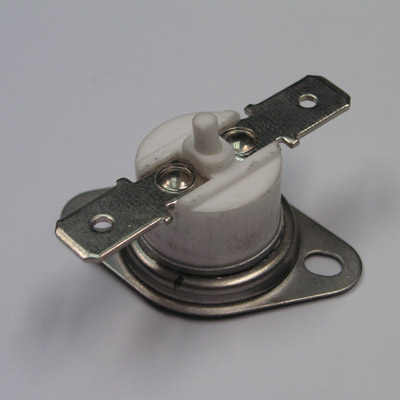

Product Name: Disc Type Thermostat
Product Code: KS-143
Application
For use in household or industrial appliances, HVAC and office equipment such as: coffee maker, jug kettle, Water heater, dishwasher, gas furnace, clothes dryer
etc
Specifications
Function : Electrical contacts open/close on temperature rise. When the temp. returns to the specified reset temp., the contacts will return to the original state.
Housing Material : Ceramic
Standard Rating :[ KEMA / CE ] 250V AC 6A
Number of Automatic Cycles for each Automatic Action: [ KEMA / CE ] 100,000 cycles
Maximum Temperature : [ KEMA / CE ] 250℃
Temperature Setting Range : [ KEMA / CE ] 0℃ - 250℃
Tolerance of Operation Range : ± 5℃~± 10℃
Standard Terminals
Standard terminals are suitable for 4.8mm and 6.3mm receptacles.
Categorized numbering Index
W Without mounting bracket M Moveable level mounting bracket
F Fix step mounting bracket S Screw type mounting bracket
S 4.8mm terminal B 6.3mm terminal
F Flat terminal E Elbow (90º) terminal
A Elbow (other angle) terminal
A Auto reset M Manual reset
Operation Temperature
NC Normal Close NO Normal Open
Approval
KEMA / CE
